Screw is 97mm overall with a thread form unique to Stanley.

(RESELLERS TAKE NOTE:  FOR ACCEPTABLE QUANTITIES WE CAN WHOLESALE THESE - PLEASE EMAIL YOUR INTEREST)

SOME HISTORICAL NOTES

For more than 150 years Stanley planes held an unmatched dominance in woodworking handplanes. They invented a proprietary thread form which was copied by many other makers in this market in particular Record, a British based competitor. Some component parts and spare blades are therefore compatible.

This spare fits the handle of certain of the 'bench' planes.  A bench plane is the name given to a range of general purpose planes which were numbered in ascending size from a #1  then #2, #3, #4, #4 1/2, #5, #5 1/2, #6, #7 and #8. The bolded codes remain in production from Stanley although their future availability is uncertain.

To complicate matters Stanley now ship planes with a mix of metric and Stanley threads although I have yet to have any call for metric fasteners at time of writing these notes in August 2018.

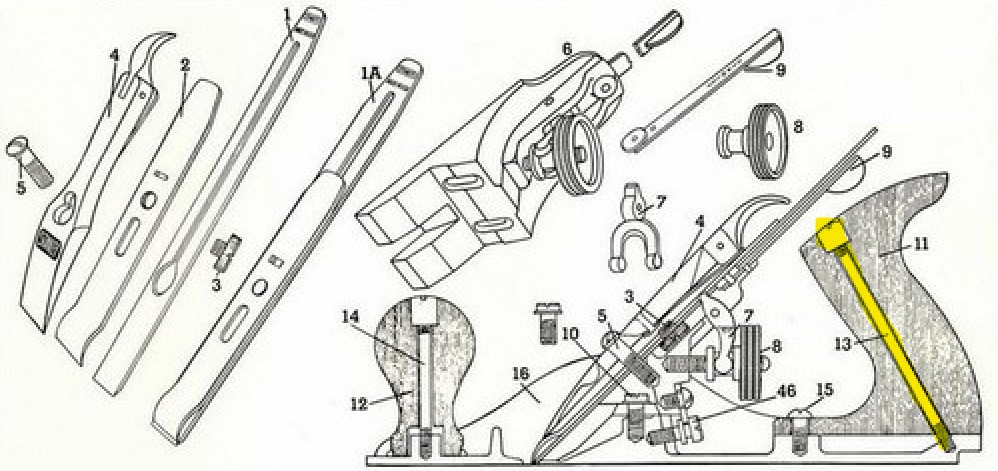

Stanley Bailey Exploded Parts Diagram

• Most of the Item Codes below are appropriate to #4 and #5 planes
• Email for Item codes for larger models
• Many components are common across the bench plane range - patterns #3 through #8
• Unfortunately Y levers and lateral adjusters are unavailable separately
• OEM Handle & Knobs, back irons and blades are available
• In recent times Stanley have started to use metric threads on some components. We have generous stocks of these items but do not yet list them
