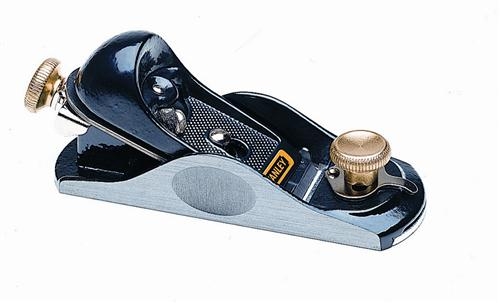

Plane, Block, STANDARD ANGLE, #9 1/2, #1.12.020, #703001 - [Y5]

Plane, Block, STANDARD ANGLE, #9 1/2, #1.12.020, #703001 - [Y5]

Description

Description

Product Categories

Item Code: T3000

$ 214.71

STANLEY - The current production model of a STANDARD angle block plane with long heritage and numerous variants made across the world over time. This is the conventional blade angle version and has an adjustable mouth, screw adjust blade feed and lateral

STANLEY - The current production model of a STANDARD angle block plane with long heritage and numerous variants made across the world over time. This is the conventional blade angle version and has an adjustable mouth, screw adjust blade feed and lateral adjustment. Blade 41.5mm at 21 degrees (bevel up) and body 160mm overall.

For cuts with the grain. Blade angle 21°. Bevel angle 25°. Results in a normal cutting angle of 46°.

Grey cast iron block plane with ground sole and adjustable mouth opening. Cap iron clamped with eccentric lever. Lateral and depth adjustment. Planes can be upgraded with durable Japanese plane blades (No. 718073, 718075).

Stanley Planes

Proven compact planes, adjustable mouth opening, easy to adjust lateral blade position, cutting depth. The blade is set bevel up (without a chipbreaker), which means that it is supported right up to the cutting edge, resulting in excellent vibration control. Grey cast iron body.

Blade width 41.5 mm
Blade thickness 2 mm
Overall length 160 mm
Weight 770 g
