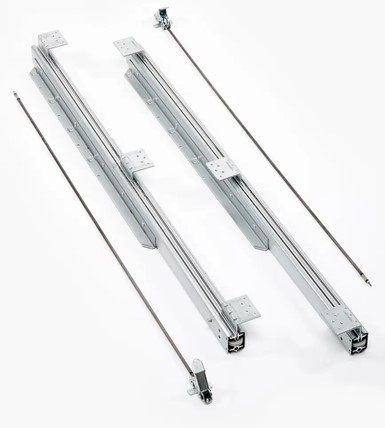

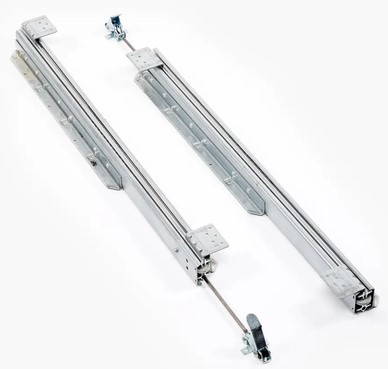

Suitable for pedestal or four-leg tables, these heavy-duty telescoping bottom-mount slides require a table sub-frame for mounting.

Because the slides telescope, they accommodate larger and more numerous leaf inserts than a non-telescoping slide of similar length.

Lever locks, to lock the slides at any extension, are conveniently located at the end of each slide.

Made in Germany, they are sturdily built from galvanized steel and aluminium, with stainless-steel ball bearings for smooth, reliable operation.

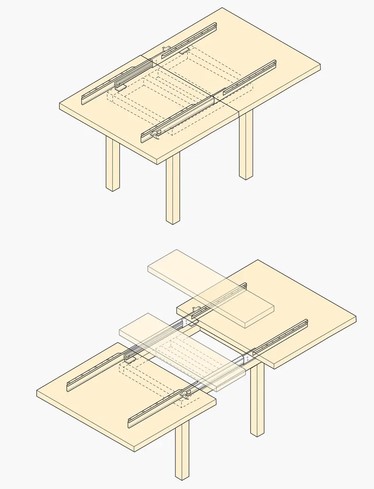

A steel cable pulley system provides synchronous opening and closing of the table-top halves to prevent tipping.

The 720mm slides can support two leaves 500mm in length and have a load capacity of 90kg; the 980mm slides can support three leaves, each up to 500mm long, and have a load capacity of 90kg.

Slide size given is closed length. Installation instructions included (mounting hardware not included).

H4265 - 720mm Option	H4266 - 980mm Option
