Leveller, Top-Adjust, Edge Mount, 12mm, #01S1905

Item Code: H4567
$ 16.98
Leveller, Top-Adjust, Edge Mount, 12mm, #01S1905
+ -

Description

These levelling feet allow easy adjustment for height and level without having to lift the furniture piece to access the levelling mechanism. One style installs in a recess on the underside of a cabinet carcass; the other mounts to the inside edge of the side panel. For both, an 8mm (5/16") through-hole drilled in the bottom panel of the carcass permits convenient access to the adjustment mechanism from above. The mechanism is driven using a 6mm hex, slot or Phillips screwdriver.

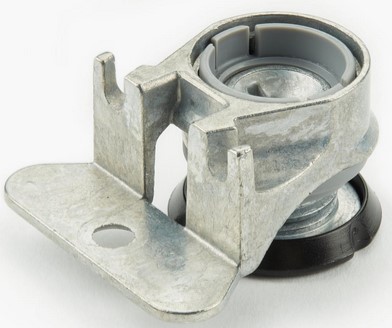

Height adjustable up to 17mm, the bottom-mount leveller simply press-fits into a 30mm diameter recess (minimum 3/4"/18mm material thickness). The edge-mount leveller is available with a 12mm (1/2") or 25mm (1") adjustment range and secures with three #6 screws, not included (minimum 5/8"/15mm material thickness).

Die-cast zinc alloy, each supports up to 385 lb/175kg, and is capped with an integral glide made of low-friction non-marring plastic. Mounting instructions included.

Made in Italy.
