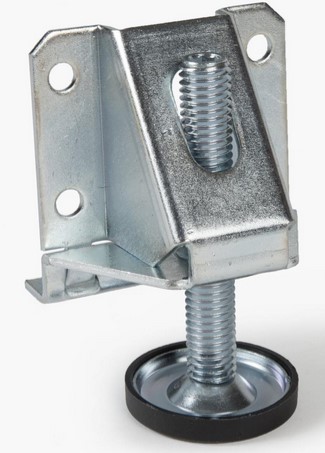

This adjustable glide is load rated at 330 lb (150kg). The 1 1/4" (32mm) diameter pivoting foot is capped with polyethylene and is attached to a 3/8" × 2 1/2" bolt. The bolt head has a hex recess, allowing adjustment under full load, using a hex key (not included).

The glide is side mounted and has a 5/16" lip to support the load. The glide assembly is 2 1/8" wide, 2 1/8" high and 1 3/4" deep. Adjusts over a range of 2".

Glides sold individually.

--------------------
