Clamp, Spreader, In-Line, Capacity 60mm, #714637

Item Code: E6116
$ 198.15
Clamp, Spreader, In-Line, Capacity 60mm, #714637
+ -

Description

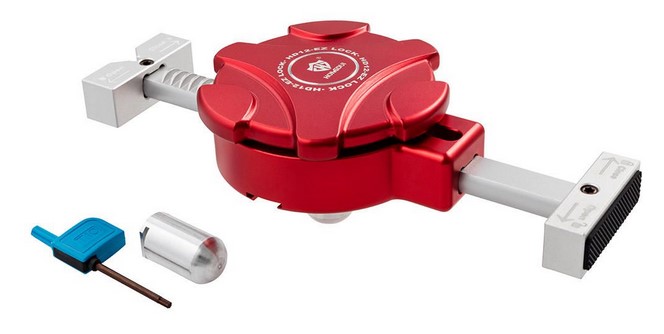

Clamp with rack feed, made of anodised aluminium. The large rotary wheel enables fine and sensitive pressure regulation. Equipped with a replaceable plug-in pin on the underside, it is fixed in the dog holes of workbenches or multifunction tables. Turning the top cover moves the rack forwards or backwards. The low profile of the clamping jaws (18 mm) is ideal for clamping flat workpieces. Two replaceable thrust pieces. The V-shaped notch on one thrust piece makes it easier to clamp round workpieces or to clamp workpieces diagonally. Incl. spigots with Ø 19 mm and Ø 20 mm.

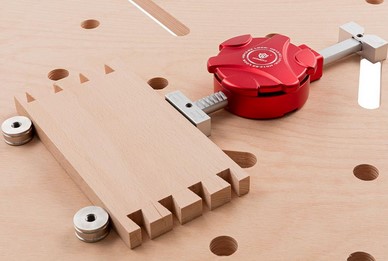

E6116 3 A

E6116 1 A

E6116 2 A
