HEGNER - The TBS 500 is a high quality, German made, bench top, single phase belt sander with a bobbin accessory available.
The TBS has an infinitely adjustable platten tilt angle which allows accurately sanded angles as well as use as a belt sander laid flat in a conventional manner.
The bobbin accessory has bobbins for 30, 40 and 50mm sleeves.
- See HERE for TBS 500 purchase options
- See HERE for bobbin accessory.
- See HERE for spare belts.
- See HERE for spare bobbin sleeves.
| TBS Belt Sander | With Bobbin Sander accessory |
|
|
|
| Platten Angle Setting | Bobbin Accessory |
 |
 |
See HERE for bobbin accessory.
See HERE for spare belts.
See HERE for spare bobbin sleeves.
| Belt Sander | |
| Belt Length | 1600mm |
| Belt Width | 150mm |
| Platten Length | 530mm |
| Platten Positions | 0~90 deg. Horizontal ~ Vertical |
| Belt Speed | 14.6m/sec |
| Dust Port | 100mm |
| Motor Type | Single phase, TEFC, 2800 rpm |
| Motor power | 1.8hp / 1.3kW |
| Voltage | 230v AC |
| Frequency | 50Hz |
| Protection | Thermal overload |
| Weight | 53kg |
| Dimensions | 960 x 450 x 310mm |
| Bobbin Accessory | |
| Bobbins | 30, 40 and 50mm diam. |

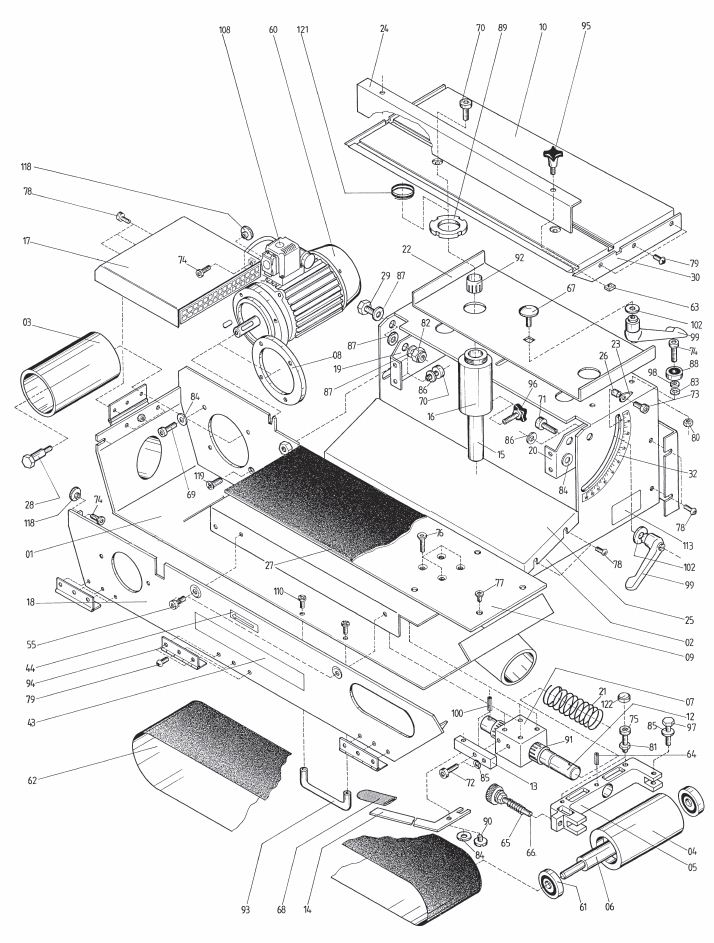

Parts Diagram
