High Torque Quartz Clock Movements

High torque, concealed clock movement for dials up to 1 metre (3 1/2 feet). Note the limitation on dial size is simply an aesthetic judgement of how any the three alternative hand sets will appear.

Quartz Clock Mechanism is accurate to +/- 3 min. a year.  Requires a 2A battery (not supplied).

Case 54mm x 54 mm across the flats and 75mm across diagonals. The body is 16mm deep.

Has an 12mm overall length of exposed threaded shaft which requires an 8mm mounting hole and suited to clock faces up to 8mm thick.

Supplied with mounting hardware and a set of black, aluminium hands depending on which item is purchased.

Note that large diameter, relatively massive clock constructions are best designed with their own suspension method

Standard Takane 61mm second hands will fit these mechanisms although they are supplied with a brass shaft cap as standard

The use of longer of heavier non-standard hand sets may damage these movements and will void any warranty.

• Replacement bare mechanisms are HERE
• Upscale hands - Item Codes P5000 or P5001 or P5002 - are available separately - see HERE

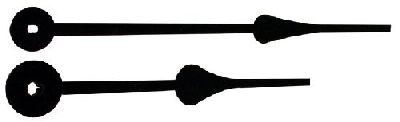

  Classic pattern 1  Item Code P5000 - supplied with Item Code: P4019


  Classic pattern 2    Item Code P5001 - supplied with Item Code: P4020

    Modern Pattern 3    Item Code P5002 - supplied with Item Code: P4021

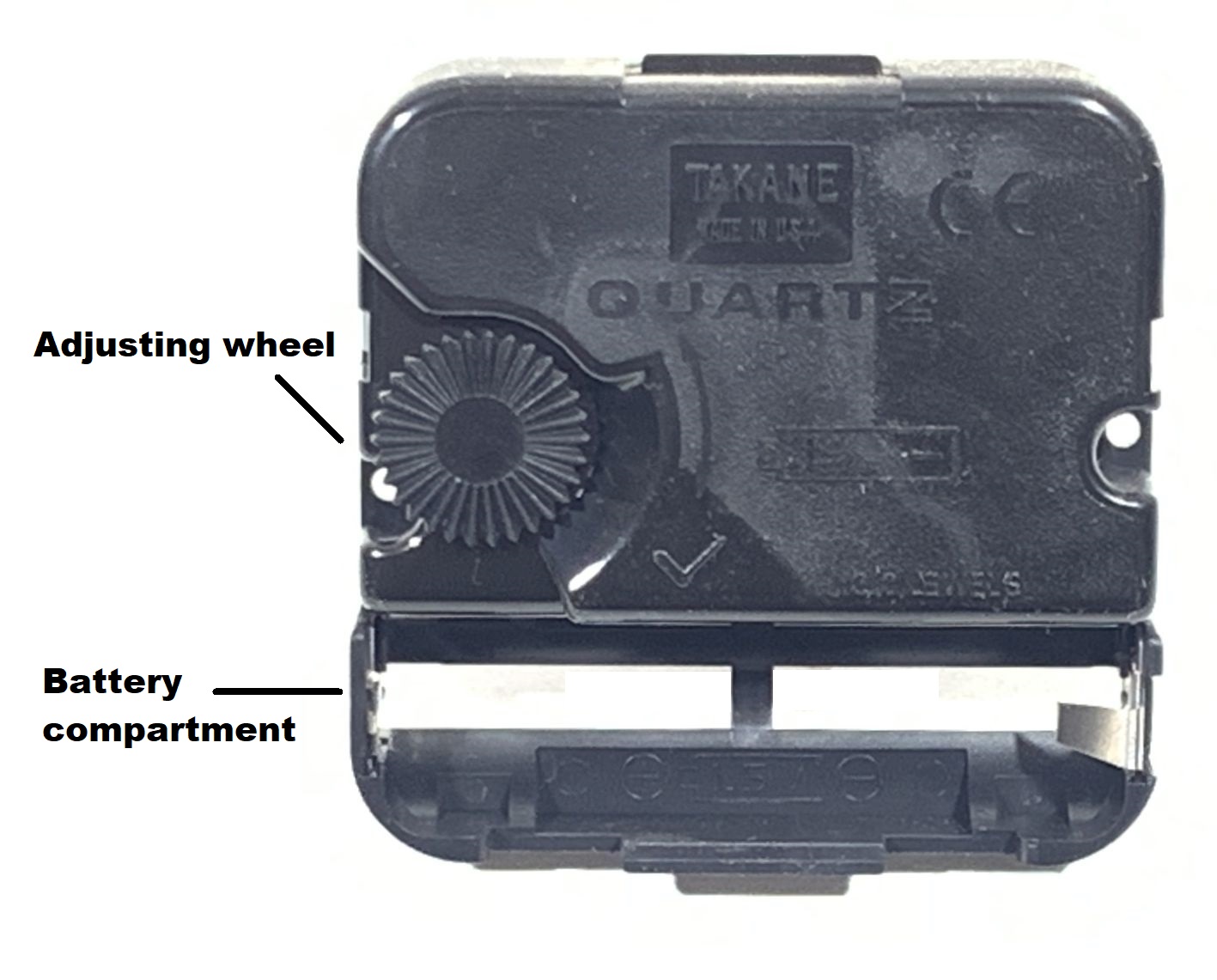

THE REAR OF THE MECHANISM

NOTE: Without an ON/OFF switch on standard mechanisms.
