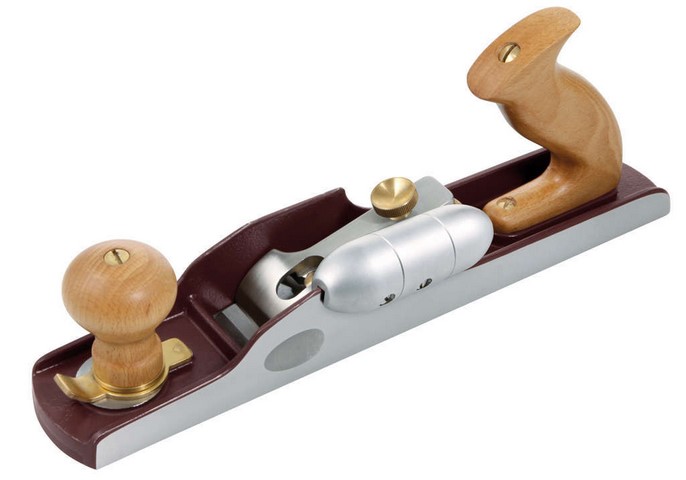

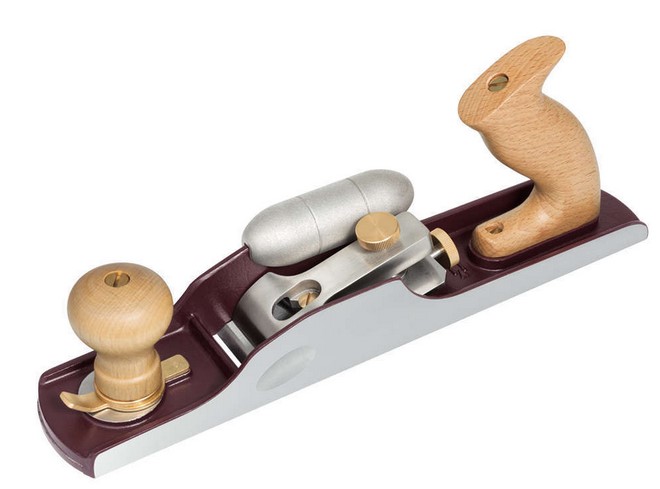

Plane, Low Angle Jack, #62, Herdim/Dick, with HOT DOG handle, RH and LH Variants, 3 Blade Options

Plane, Low Angle Jack, #62, Herdim/Dick, with HOT DOG handle, RH and LH Variants, 3 Blade Options
Size / Weight / Qty Price Quantity
Item Code: T2870 LH Use, SK4 Blade Price:
$ 538.93
$ 538.93
- +
Item Code: T2871 RH Use, SK4 Blade Price:
$ 538.93
$ 538.93
- +
Item Code: T2872 LH Use, Blue Paper Blade Price:
$ 604.87
$ 604.87
- +
Item Code: T2873 RH Use, Blue Paper Blade Price:
$ 604.87
$ 604.87
- +
Item Code: T2874 LH Use, HSS Blade Price:
$ 587.38
$ 587.38
- +
Item Code: T2875 RH Use, HSS Blade Price:
$ 587.38
$ 587.38
- +

Description

62 LOW ANGLE JACK
Because of its length, shape and accessories, the No. 62 is the most universal type of plane and was already very popular in Stanley’s time. Apart from finishing, its long design also makes it ideal for trueing surfaces. The blade, whose cutting angle can be easily adjusted by regrinding the bevel, handles even end grain, knotty wood and difficult grain without problems. Once assembled, the supplied »hot dog« (side handle), the indentations and the strong cap iron with finger recesses ensure optimal ergonomic planing. For fine cuts and end grain processing. Blade angle 12°. A 25° bevel angle results in a cutting angle of 37°.
  • Easy adjustment of the plane mouth via the front handle
  • Easy to change the cutting angle by regrinding the blade
  • Main grip tilted downwards for optimum force transmission and balance
  • Cap iron with pressure plate
  • Lateral adjustment with setscrew
  • Optimised design for ergonomic use as a shoot board plane
  • Cast steel plane body
LEFT HAND SHOOTING RIGHT HAND SHOOTING
T2870 A T2870 1 A



Specifications

Size/weight/qty LH Use, SK4 Blade
