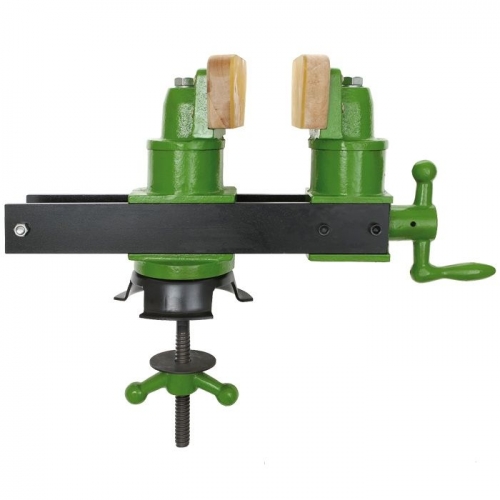

Patternmaker's Vice

This style of vice was once more commonplace in the heyday of patternmaking.

The exceptionally solid, grey cast iron heads can be tightened parallel to one another or individually swiveled to accept oddly shaped pieces. The vice mounts through any hole in the bench top (a dog hole will do). Once mounted, it can be easily swiveled a full 360° and locked in place via a winged nut. The swivel base can be either mounted above the bench top (working height 250 mm) or below (working height 215 mm). Grey cast iron body, steel guide rails, trapezoidal threads on the spindle with hand crank, softwood jaws with soft polyurethane linings. Max. bench top thickness 130 mm.

Max. opening 150 mm, jaw width 125 mm, max. bench top thickness 130 mm, weight 14 kg.
